AIR TANK

Air Tank for Sale with the best quality products and the best service

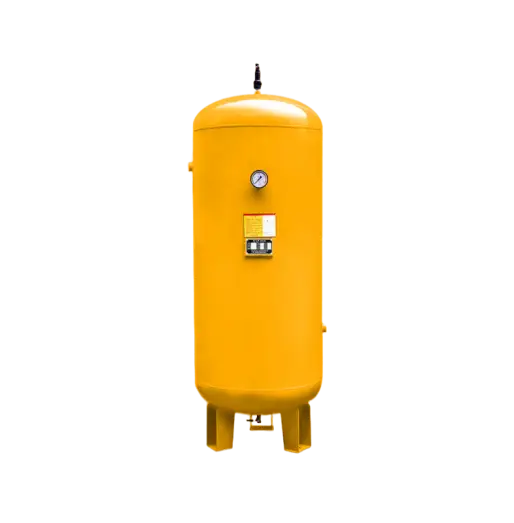

Air tank/Air receiver
Model	Volume	Pressure	Tall	Diameter	Wall thickness	Interface	Weight
Model	（L）	（Mpa）	（mm）	（mm）	（mm）	Interface	（KG）
0.3/0.8	300	0.8	1582	550	3.25	1.5寸螺纹	78
0.3/1.0	300	1.0	1584	550	3.75	1.5寸螺纹	90
0.3/1.3	300	1.3	1586	550	4.5	1.5寸螺纹	104
0.3/1.5	300	1.5	1800	300	6	1.5寸螺纹	145
0.3/3.0	300	3.0	1582	550	8	2寸螺纹	195
0.6/0.8	600	0.8	2089	650	3.5	1.5寸螺纹	143
0.6/1.0	600	1.0	2089	650	4.25	1.5寸螺纹	168
0.6/1.3	600	1.3	2091	650	5	1.5寸螺纹	192
0.6/1.5	600	1.5	2091	650	5	1.5寸螺纹	185
0.6/3.0	600	3.0	2089	650	8	2寸螺纹	295
1.0/0.8	1000	0.8	2180	800	4.25	1.5寸螺纹	209
1.0/1.0	1000	1.0	2510	800	4.5	1.5寸螺纹	219
1.0/1.3	1000	1.3	2277	800	5	1.5寸螺纹	238
1.0/1.5	1000	1.5	2277	800	5	1.5寸螺纹	240
1.0/1.6	1000	1.6	2277	800	5	1.5寸螺纹	285
1.0/3.0	1000	3.0	2180	800	10	3寸法兰	470
1.5/0.8	1500	0.8	2360	1000	6	1.5寸螺纹	365
1.5/1.0	1500	1.0	2359	1000	6	1.5寸螺纹	310
1.5/1.3	1500	1.3	2360	1000	6	2寸螺纹	365
2.0/0.8	2000	0.8	2860	1000	6	2寸螺纹	370
2.0/1.0	2000	1.0	2860	1000	5	2寸螺纹	381
2.0/1.3	2000	1.3	2860	1000	6	2寸螺纹	440
3.0/0.8	3000	0.8	2660	1200	5	3寸法兰	500
3.0/1.0	3000	1.0	3012	1200	5	3寸法兰	5.5
3.0/1.3	3000	1.3	3014	1200	6	3寸法兰	590
4.0/0.8	4000	0.8	3075	1400	5	3寸法兰	600
4.0/1.0	4000	1.0	3076	1400	6	3寸法兰	700
4.0/1.3	4000	1.3	3080	1400	8	3寸法兰	910
5.0/0.8	5000	0.8	3154	1500	5	3寸法兰	685
5.0/1.0	5000	1.0	3154	1500	6	3寸法兰	800
5.0/1.3	5000	1.3	3154	1500	8	3寸法兰	1030

Why Choose Us ?

High Quality Control

AirHorse ensure every machine Runs well more than 15 years

Quickly Effect Shipment

Stock Available + Very Quickly Effect Shipment

24 Hours Service

24 Hours Service Always at your service

Piping Material Features Comparison
Piping Features	Stainless Steel(Type 304L)	Mild Steel	Blue anodized Aluminum Alloy
Weight (Dia 6inch, Length 6m)	127.2	169.6	29.142
Corrosion Resistant	Yes	No	Yes(100%)
Pressure drop (Dia 2 inch Length= 20m,Airflow=3 cubic metres/Minute, Pressure=10 bar)	0.25	0.4 Bar	0.1
Energy Efficiency	High	Low-moderate	High( Potential Cost savings of 34%)
Mechanical Strength	Very Strong	Very Strong	Strong
High-Temperature Rating	Yes	Yes	Yes
Installation Ease	Less Difficult	Difficult	Easy(High Flexibility and Modularity)
Installation Time	Approx 6 feet length per hour	Approx 6 feet length per hour	Approx 45 feet Length per hour
Work Hours/Manpower Required for a 2″ pipe and a 3000 feet piping	Approx 600 man-hours/8 men for 2 weeks	Approx 600 man-hours/8 men for 2 weeks	Approx 100 man-hours /8 men for less than 2 days
Annual Cost(Installation, Commissioning, and operation)	Approx 3000 dollars	Approx 7820 dollars	Approx 1300 dollars
Installation Cost Material%/Labor%	30% / 70%	25% / 75%	80% / 20%
Surface roughness	0.03	0.05	0.001
Special Tools Required (welder, threader, groove cutter)	Yes	Yes	No
Air Quality	High(Should the application require it, these pipe systems can help meet the requirements of ISO 8573-1: 2010 air quality standards.	Low( Not according to !SO 8573-2010 air quality standards)	High(Should the application require it, these pipe systems can help meet the requirements of ISO 8573-1: 2010 air quality standards.
Cost per meter	Almost 2 less than Aluminum	3 Times less than Aluminum	163.64 Dollars(Parker Transair)
Life Span( Will vary according to environmental factors, Pipe design, and Pipe grade.	30 years	40 years	20 years
Initial Cost of installations	Material : 30% Labor:70%	Material : 25% Labor:75%	Material : 80% Labor:20%
Maintenance	Difficult(Accumulation of rust under pipes and fittings which travels to machinery, may require preventive maintenance every week)	Difficult (Accumulation of rust under pipes and fittings which travels to machinery may require preventive maintenance every 3-4 days)	Easy (No accumulation of rust, may require preventive maintenance every 4 Weeks)
